DTC (Diagnostic Trouble Codes)

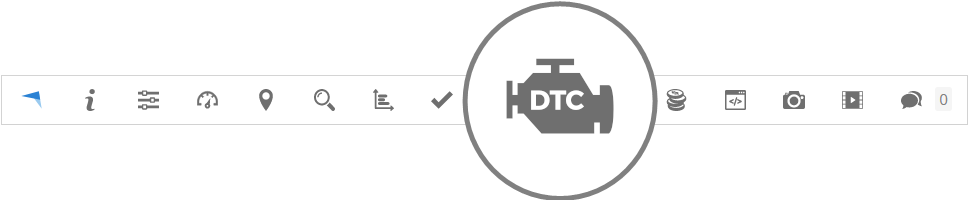

To access the DTC (Diagnostic Trouble Codes) menu, press dtc button in Top panel.

../_images/top_bar_big_dtc.png

Diagnostic Trouble Codes enables the display of trouble codes received via OBD compatible devices.

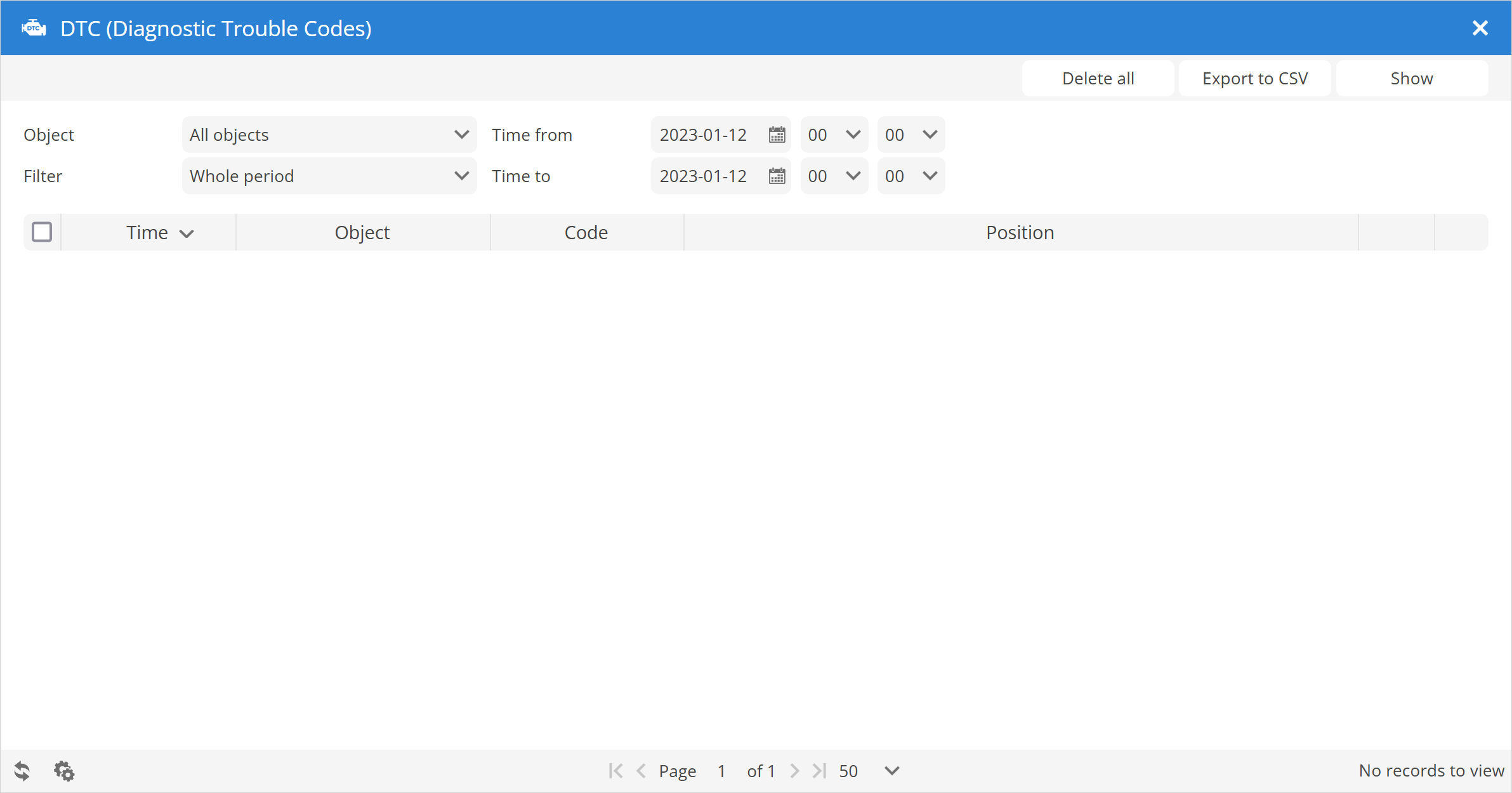

../_images/dtc.png

  • Object - select the object or objects for which DTC records are to be displayed.

  • Filter - quick selection of the period for which DTC entries should be displayed.

  • Time from/Time to - precise way to specify the period for DTC records are to be displayed.

  • Time - date and time when the DTC record was generated.

  • Object - object name for which DTC record was generated.

  • Code - diagnostic trouble codes received from the tracking device.

  • Position - topographic coordinates and address of the place where DTC record was generated.

  • remove - permanently removes DTC record.

  • refresh - reloads logbook DTC records list.

  • action2 - opens action menu.

    • remove - permanently removes all selected DTC records.
