Report properties

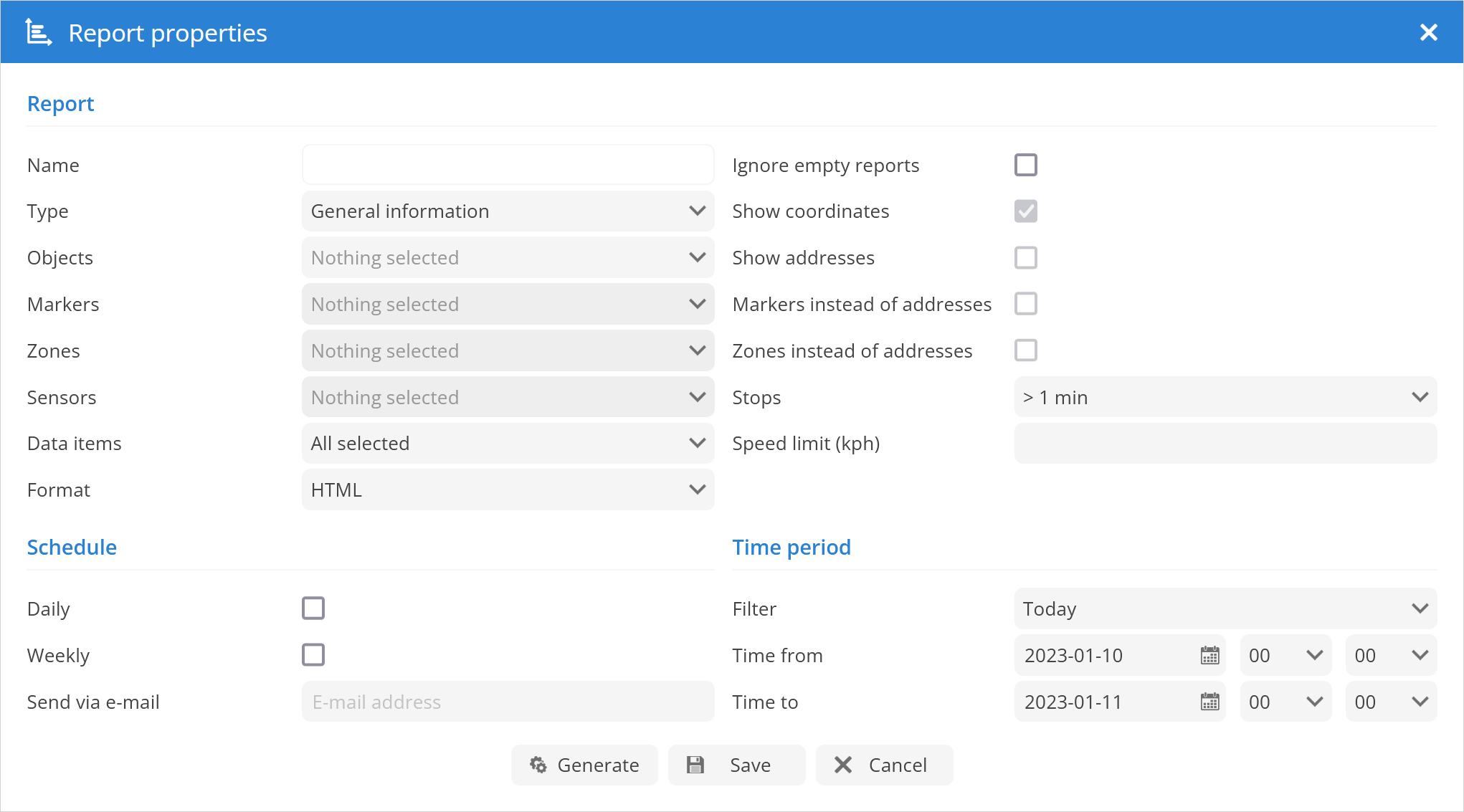

To create new Report, press plus button at the bottom of Reports window.

../_images/report_properties.png

  • Name - name of the report.

  • Type - select report type:

Text reports:

General information

The report contains: Object name, period, route start, route end, route length, trip duration, stop duration, number of stops, maximum speed, average speed, number of overspeeds, fuel consumption, average fuel consumption (100 km), fuel cost, engine work, engine idle, odometer, engine hours, driver and trailer.

General information (merged)

General information displayed in the rows and information summed for all selected objects.

Object information

Report contains: Object name, IMEI, Group, Transport model, VIN, Plate number, Odometer, Engine hours, Driver, Trailer, GPS device, SIM card number.

Current position

Report contains: Object name, Time, Position, Speed, Altitude, Angle, Status, Odometer, Engine hours.

Current position (offline)

Report contains information about current objects position which are offline.

Route data with sensors

Report contains: Object name, Period, Time, Position, Speed, Altitude, Angle.

Driving summary

provides the same information as general report but adds objects stops and driving information. Report contains: Object name, Period, Status, Start, End, Duration, Stop position, Length, Top Speed, Average speed, Fuel consumption, Avg. fuel cons. (100 km), Fuel cost, Engine idle, Driver, Trailer, Additional total and average information.

Drives and stops

Same as drives and stops report with additional sensor information.

Drives and stops with sensors

same as drives and stops report with additional logic sensor information.

Drives and stops with logic sensors

Provides coordinates and addresses of stops, length between stops and object fuel consumption. Report contains: Object name, Period, Time A, Position A, Odometer A, Time B, Position B, Odometer B, Duration, Length, Fuel consumption, Avg. fuel cons. (100 km), Fuel cost, Driver, Trailer.

Travel sheet

Provides coordinates and addresses of stops, length between stops and object fuel consumption.Report contains: Object name, Period, Time A, Position A, Odometer A, Time B, Position B, Odometer B, Duration, Length, Fuel consumption, Avg. fuel cons. (100 km), Fuel cost, Driver, Trailer.

Travel sheet (day/night)

Same as travel sheet report but additionally allows to choose day/night time.

Mileage (daily)

Report contains: Object name, Period, Time, Start, End, Move duration, Length, Fuel consumption, Avg. fuel cons. (100 km), Fuel cost, Engine hours, Driver, Trailer.

Overspeeds

Report contains: Object name, Period, Start time, End time, Duration, Top speed, Average speed, Overspeed position.

Overspeed count (merged)

Overspeed information with count.

Underspeeds

Report contains: Object name, Period, Start time, End time, Duration, Top speed, Average speed, underspeed position.

Underspeed count (merged)

Underspeed information with count.

Marker in/out

Report contains: Object name, Period, Marker in, Marker out, Duration, Route length, Engine hours, Marker name, Marker position.

Marker in/out with gen. information

Merged Marker in/out and General information report.

Zone in/out

Report contains: Object name, Period, Zone in, Zone out, Duration, Route length, Engine hours, Zone name, Zone position.

Zone in/out with gen. information

merged Zone in/out and General information report.

Events

Report contains: Object name, Period, Time, Event name, Driver, Event position.

Events (merged)

Merged events information report.

Service

Provides service information.

Fuel fillings

Shows object fuel fillings history. Results depends on fuel fillings accuracy settings. Report contains: Object name, Period, Time, Position, Fuel tank capacity before and after, Amount filled, Sensor, Driver.

Fuel thefts

Shows object fuel thefts history. Results depends on fuel thefts accuracy settings. Report contains: Object name, Period, Time, Position, Fuel tank capacity before and after, Theft amount, Sensor, Driver.

Logic sensors

Provides information about logic sensors, when they were turned on and off with duration.

Driver behavior (RAG by object)

Provides score about driver behavior (overspeeds and harsh driving), driver must be assigned to object in order to use this report.

Driver behavior (RAG by driver)

Provides score about driver behavior (overspeeds and harsh driving), driver must be assigned to object in order to use this report.

Tasks

Information about available tasks.

RFID and iButton logbook

Information about driver assign changes.

DTC (Diagnostic Trouble Codes)

Show object DTC error codes, this feature must be supported by GPS device.

Expenses

Shows expenses for selected objects for set period of time.

Graphical reports
Speed

Speed graph.

Altitude

Altitude graph.

Ignition

Ignition graph.

Fuel level

Fuel level graph, fuel level sensor must be configured.

Temperature

Temperature graph, temperature sensor must be configured.

Sensor

Graph of selected sensors.

Map reports
Routes

Report contains map with object routes.

Routes with stops

Report contains map with object routes and stops.

Media reports
Image gallery

Report includes images received from devices, useful for printing.

  • Objects - Select objects for which report will be generated.

  • Markers - select which markers will be used to generate reports. Active for Marker in/out and Marker in/out with gen. information reports.

  • Zones - select which zones will be used to generate reports. Active for Zone in/out and Zone in/out with gen. information reports.

  • Sensors - select which sensors will be used to generate reports. Active for Drives and stops with sensors and Drives and stops with logic sensors reports.

  • Data items - select which data items to display in the report. By default, all items are enabled.

  • Format - select in which format report will be generated HTML, PDF or XLS.

  • Ignore empty reports - if the object or objects have no records for the set period of time, the empty report for this object or objects will not be displayed.

  • Show coordinates - the location of objects in the report is displayed as topographic coordinates.

  • Show addresses - the address of the object location is displayed in the report.

  • Markers instead of addresses - the name of the nearest marker to the object location is displayed instead of the address.

  • Zones instead of addresses - the name of the nearest zone to the object location is displayed instead of the address.

  • Stops - specify the time of stops to be included in the report to avoid traffic light stops.

  • Speed limit (kph) - set speed limit for Overspeed and Underspeed reports.

  • Schedule - settings for scheduled reports:

    • Daily - reports are sent daily for the previous day.

    • Weekly - the reports are sent weekly, every Monday for the previous week.

    • Send via e-mail - enter one or more comma- separated e-mail addresses to which the reports should be sent.

  • Time period - set the period in which the report is to be prepared:

    • Filter - quick select the time period for the report.

    • Time from/Time to - precise way to set the period for the report.
