Trailers

This section allows to add trailers and assign them to object. Trailers section purpose is to identify and collect information about trailer changes. Trailer information can be seen in object details panel (note: object details panel only appears if Objects, Events or History tab is selected in left panel.). Trailer name is available in reports. GPS device must be configured with iButton or RFID device.

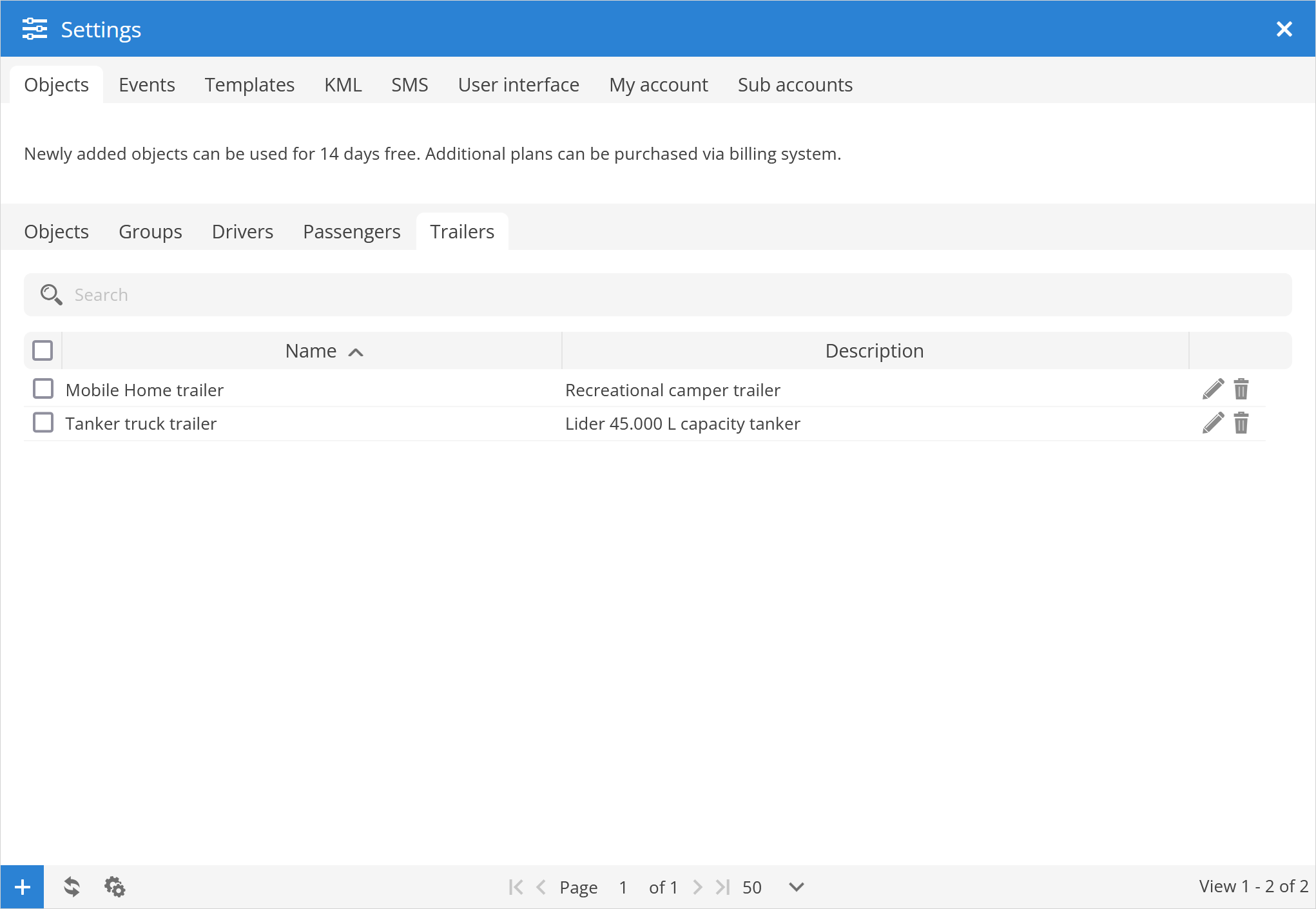

../_images/trailers.png

  • Search - allows to find trailer record by the name.

  • Name - name of the trailer.

  • Description - short description of the trailer record.

  • edit - opens Object trailer properties menu.

  • remove3 - permanently removes trailer record.

  • plus - allows to add new trailer record.

  • refresh - reloads trailer list.

  • action2 - opens action menu.

    • import - allows to import previously exported trailer records.

    • export - allows to export trailer records.

    • remove3 - deletes all selected trailer records.

Object trailer properties

After clicking on plus button, Object trailer properties window will appear which allows to create new driver record.

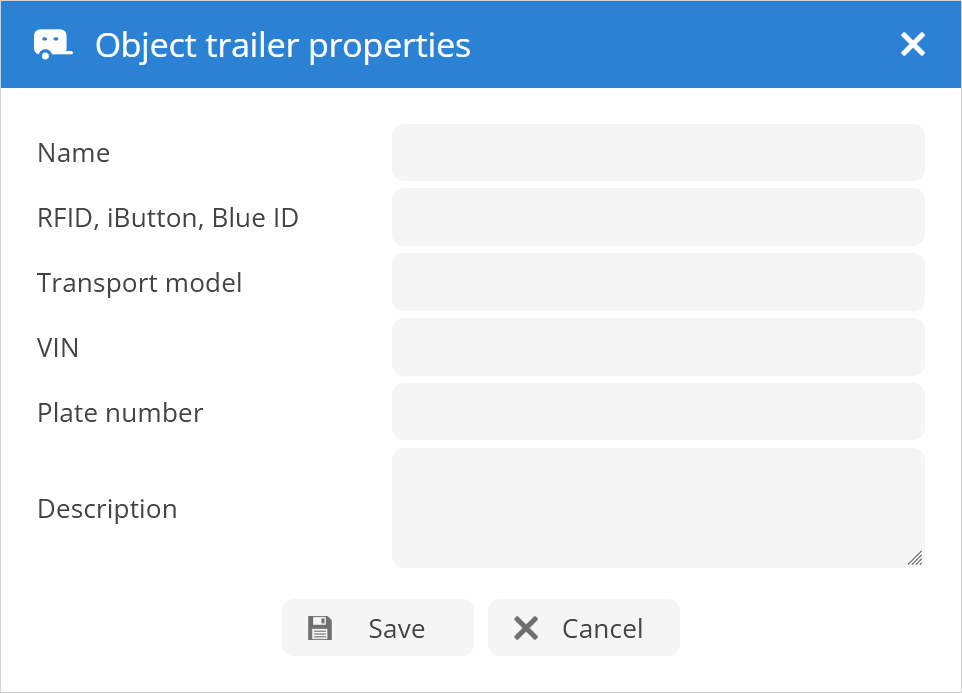

../_images/object_trailer_properties.png

  • Name - enter new trailer name.

  • RFID, iButton, Blue ID - enter RFID, iButton or Blue ID codes, this is required for Auto assign trailers.

  • Transport model - model information.

  • VIN - VIN number of the trailer.

  • Plate number - license plate of the trailer.

  • Description - short description of the trailer record.
