Schedule

The object control schedule allows you to schedule the sending of commands so that they are executed on a specific day of the week or at a specific time of day.

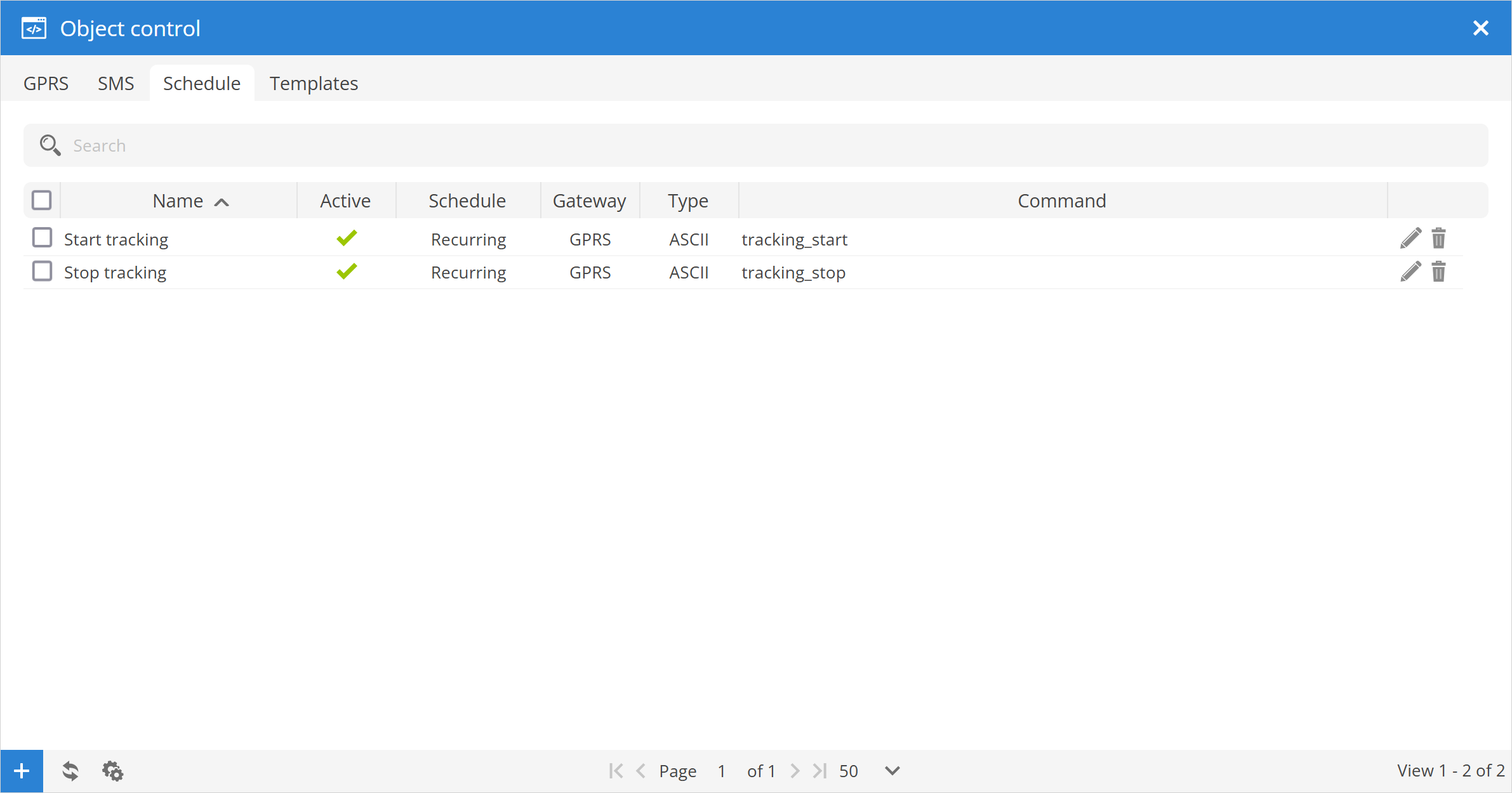

../_images/object_control_schedule.png

  • Name - name of the scheduled command.

  • Active - indicates the status of the scheduled command: active or deactivated.

  • Schedule - indicates whether the scheduled command will be executed recurrently or once.

  • Gateway - specifies the way in which the command is sent to the tracking device: GPRS or SMS.

  • Type - specifies the type in which the command is sent ASCII or HEX, only applicable for GPRS commands.

  • Command - body of the command to be sent to the tracking device.

  • edit - opens Schedule properties menu.

  • remove - permanently removes scheduled command record from list.

  • refresh - reloads scheduled commands list.

  • action2 - opens action menu.

    • remove - permanently removes all selected scheduled command records from the list.

Schedule properties

To create a new scheduled command, click the plus button at the bottom of the Object control window.

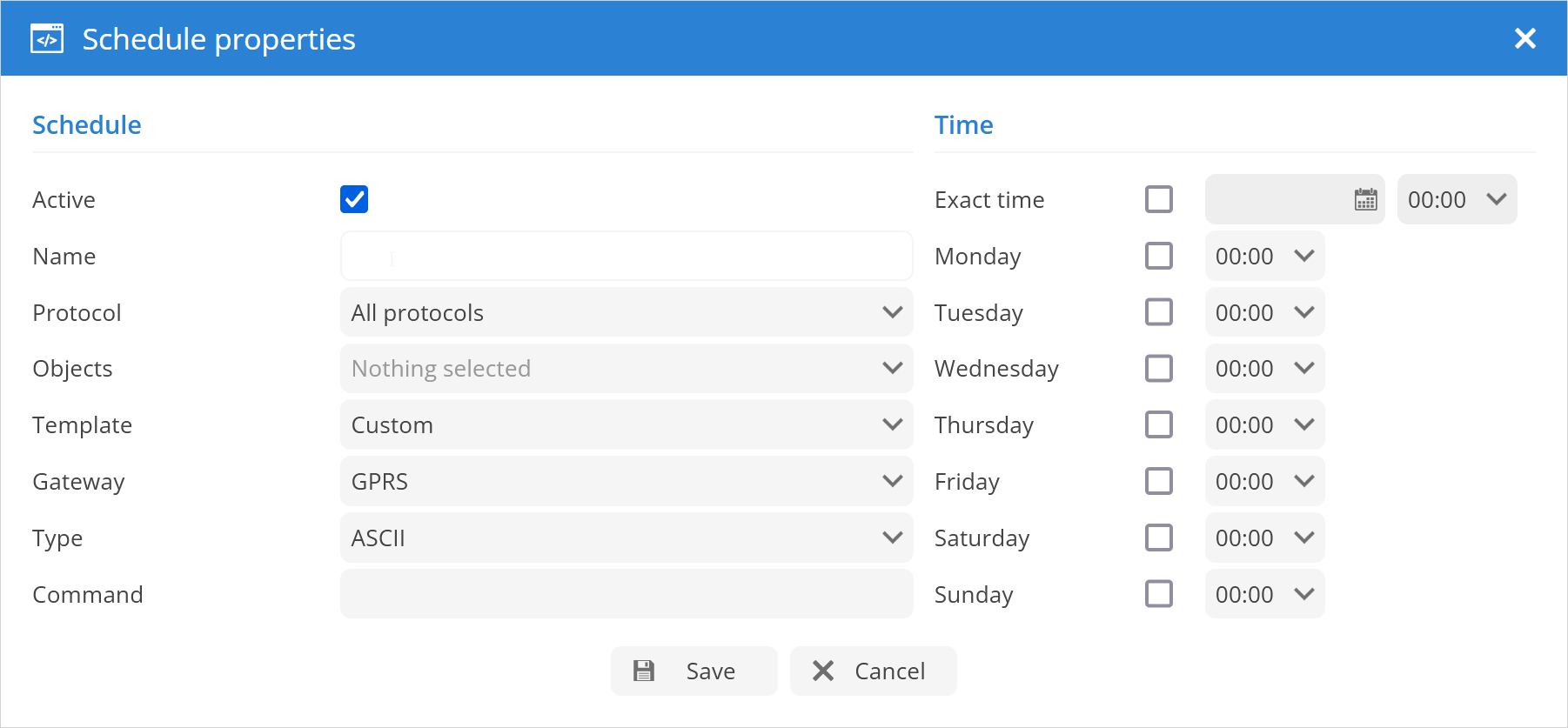

../_images/schedule_properties.png

  • Schedule

    • Active - activates or deactivates scheduled command.

    • Name - name of the scheduled command entry.

    • Protocol - specify device models for which commands are to be executed.

    • Object - select object or objects for which scheduled commands will be executed.

    • Template - select the template of the command to be executed.

    • Gateway - specify the way in which the command is sent to the tracking device: GPRS or SMS.

    • Type - specify the type in which the command is sent ASCII or HEX, only applicable for GPRS commands.

    • Command - displays the selected command or allows manual entry of a scheduled command.

  • Time

    • Exact time - set date and time when command will be executed.

    • Mon - Sun - set days of the week and time when scheduled command will be executed recurrently.
